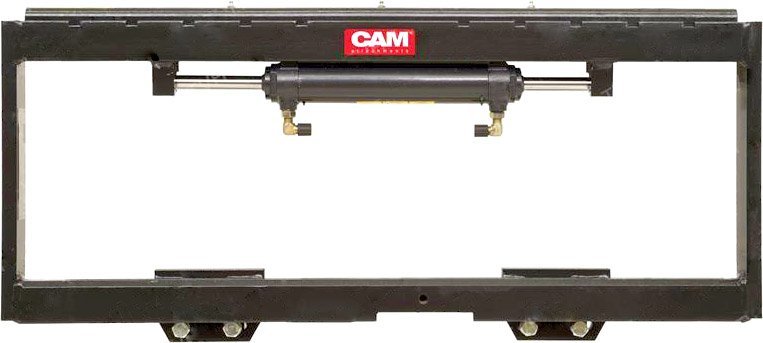

Please note that lead times can vary depending on availability. Also, the image is generic and may not represent the actual size of the item.If you are unsure of which class your sideshifter is, check out the ITA Style Forks portion our article HERE explaining which carriage your forklift has.These Side-Shifters are made using quality components and are easy to mount and maintain. The double effect cylinder allows for speed when shifting in both directions.Standard Side-Shifter Features: • # 6 JIC Fittings • Place loads quickly without repositioning the truck • Hydraulic cylinder can be easily disassembled for complete maintenance • Replacement parts available • 2 year warrantyPlease see the LOAD BACK REST section for compatible backrests if needed (Verify width & number of bolts for compatibility)Specifications for this Sideshifter:• Class: Class IV • Capacity: 17000lbs. (7700kg) • Bolts Per Side (for mounting load back rest): 4 • Frame Width (Dimension A): 70.87″ (1800mm) • Min. Carriage Width (Dimension C): 57.10″ (1450mm) • Overall Height: 27.76″ (705mm) • Lost Load (Dimension LL): 3.94″ (100mm) • HCG (Dimension CG): 2.17″ (55mm) • VCG: 13.78″ (350mm) • Weight: 693lbs (315kg) • Stroke (side to side movement): 6″ 6″ (150 150mm)
