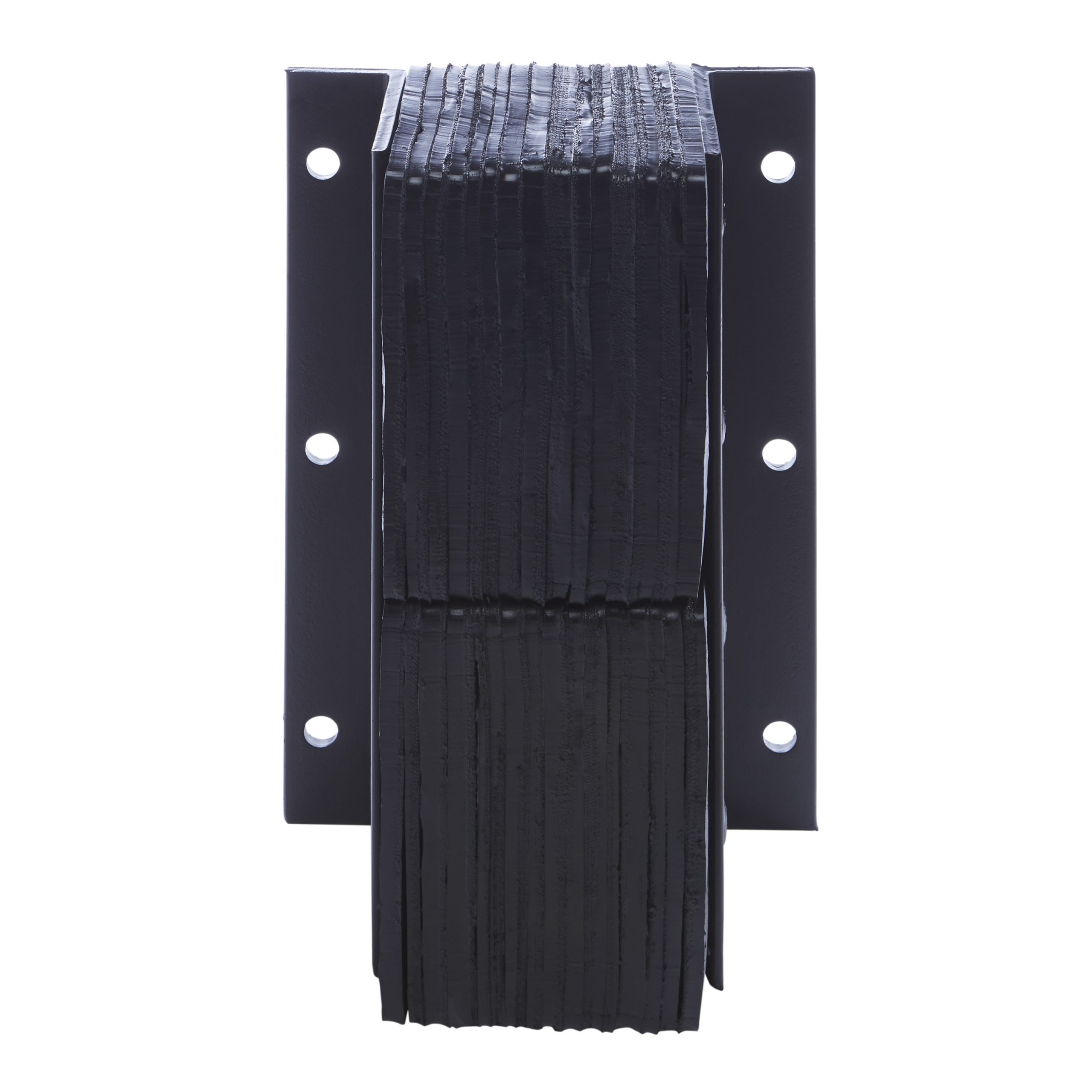

Vertical Laminated Dock Bumper 20″H x 6″W x 11″H 6″ Projection

Vertical Laminated Dock Bumpers are a durable method for protecting docks in low to medium traffic applications. Manufactured from reclaimed, bias-ply truck tires, Ideal Warehouse Innovations’ laminated bumpers outlast ordinary bumpers made from used conveyor belting. Additional durability is gained with robust, 3/8” thick steel angles as the structural anchoring point to the dock. FEATURESCovered by a 2-Year Replacement Warranty.Over 300 standard sizes offer full range protection and application.Vertical, Horizontal, Extra-Wide and L-Shaped models on hand to guard against any trailer impact locations.Reclaimed, bias-ply truck tire rubber pads laminated between steel angles and secured with 3/4” rods.Fastened to the dock surface through 3/8” steel side angles and/or flat plates, depending on the model chosen.STANDARD SIZESProjections: 4”, 6”, 8”, 9”, 10” or 12”Vertical protection from 6” to 36”Horizontal protection from 12” to 10’4”INSTALLATION STYLESStandard Model: Angle both sides for anchoring.P1 Style: Angle one side for anchoring, flat plate one side for welding.P2 Style: Flat plate on both sides for welding.Wall mounting hole size is 7/8” diameter. 3/4” anchor bolts or welding to dock steel are typical installation techniques.CUSTOMIZATION AVAILABLELarger projections are available by adding steel extension brackets.Customized bracketing available for unique installation options.Custom sizes available – contact Ideal Warehouse Innovations.
